Sun Star Rolling Shutters

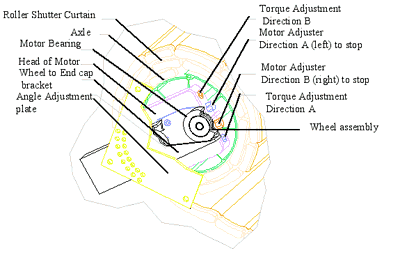

Technical Features: Sun Star Below: Sun Star Components Sun Star - Technical Features Below: Sun Star Operator Components Description of operation: The Sun Star roller shutter is operated by a tubular motor with a built- in torque limit switch. The Rolling Shutter rolls from top to bottom. Every Shutter is motorized The tube has a wheel bracket at each end which are mounted to adjustment plates, that have been pre-set based on the slope of the roof. The curtain is moved in the housing along the teflon half cradle due to the moving roller shutter axle.

	Housing Roll formed, baked enamel aluminum profile, 45° angled on one corner end caps made of thick dye cast aluminum

	Guide Rail Extruded, powder coated aluminum profile with rubber inserts to reduce friction

	Bottom Stop Sill Extruded, powder coated aluminum profile located along the lower edge of the shutter

	Curtain Slat Roll formed, foam filled, baked enamel aluminum profile (vented or non vented).

	Glide Profile Extruded, powder coated aluminium profile with rubber inserts and pre-drilled mounting holes. Mounted above existing structural joists or T-bars max.. span width of gliding profiles: approx... 4’

	Stabilizer Strut Extruded, powder coated aluminum profile with felt. used in shutters over 102" in width

	Side Base Plates Extruded, powder coated aluminum profile

	Operation Motor Data: Tubular Motor (Siral) Voltage 110 V Power 175 Watts Strength of the electrical current 0,78 AMPS Speed 12 RPM Torque 30 NM CSA, UL approval July 1997 Torque Limit switch is adjustable in both directions to control upper and lower stop positions.

	Connecting Cable With connector at motor Cable color: white Cable lengths: 3’, 9’, 15’ and 30’ Cable exit at the side of the motor

	Interior Switch Momentary 3 Position Rocker Switch is standard (Maintain switches available upon request) Standard cover plate is cream.
